Hewlett-Packard 8901A |
|
|
 |
- Measures transmitter power, frequency, and signal
modulation
- Reads modulated signals 150kHz-1300MHz
- Contains sensitive band-pass filters and
multiple channel receivers
- Programmable functions
|
|
|
|
Hewlett-Packard 8901B |
|
- An improvement over the 8901A, with better power
meter and more capabilities
- Can operate with external power sensors
- Able to measure the amount of distortion of 400Hz
and 1kHz signals
- Includes a counter for audio frequencies
- Measures transmitter power, frequency, and signal
modulation
- Reads modulated signals 150kHz-1300MHz
- Contains sensitive band-pass filters and
multiple channel receivers
- Programmable functions
|
|
|
|
Hewlett-Packard 8903A |
|
|
 |
- Measures distortion, SINAD, S/N ratio, true RMS volts, DC
volts and frequency all in one unit
- Reads frequencies 20Hz to 150kHz
- Contains a programmable low distortion source
- HP-IB programmable
|
|
|
|
Hewlett-Packard 8903B |
|
- An improvement over the HP8903A, also detecting true RMS,
average and quasi peak detection
- Measures distortion, SINAD, S/N ratio, true RMS volts, DC
volts and frequency all in one unit
- Reads frequencies 20Hz to 150kHz
- Contains a programmable low distortion source
- HP-IB programmable
|
|
|
 |
Tektronix DA4084 Distortion
Analyzer |
|
- Upgrade to the AA5001 model
- Programmable
- Comes with a TM5003 mainframe
|
|
|
|
Network Analyzers
Click
here for add-on components
|
|

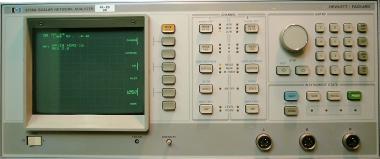

Hewlett-Packard 8756A |
|
|
 |
- Dual channel scalar network analyzer
- Measures insertion gain/loss, return loss, and
absolute power
- Dynamic range: -50dBm to +10dBm
- Frequency range: 10MHz-18GHz, upgradeable to 40GHz (uses the
HP11664A AC sensor)
|
|
|
|
Hewlett-Packard 8757A |
|
- An improved cousin to the 8756A, with an increased
dynamic range of -60dB to +16dB
- Measures insertion gain/loss, return loss, and
absolute power
- Can measure forward & reflected power simultaneously
with a reflectrometer bridge upgrade (available from HP)
- Upgradable to a 4th input channel
- Frequency range: 10MHz-18GHz, upgradeable to 40GHz (uses the
HP11664A AC sensor)
- HP-IB programmable
|
|
|
|
Hewlett-Packard 8757D7D |
|
|
 |
- A "younger brother" to the HP8757A, with 4 color
channels
- Dynamic range: -60dB to +16dB
- Frequency range: 10MHz-18GHz, upgradeable to 40GHz (uses the
HP11664A AC sensor)
- Measures insertion gain/loss, return loss, and
absolute power
- Can measure forward & reflected power simultaneously
with a reflectrometer bridge upgrade (available from HP)
- Upgradable to a 4th input channel
- HP-IB programmable
|
|
|
|
Hewlett-Packard 8754A |
|
- Vector/scalar analyzer
- Contains 2 independent channels for simultaneous
readings on 2 separate parameters
- Frequency range: 4MHz-1300MHz (upgradeable to
2600MHz)
- Sweep width: 1MHz-1000MHz
- Output level: 0dBm to +13dBm
|
|
|
|
Hewlett-Packard 8753A |
|
|
 |
- Vector/scalar analyzer
- Integrates a synthesized source with over 100mW
maximum power @ 1Hz resoltion
- Displays linear and logarithmic sweep
- Frequency range: 300kHz-3GHz
- HP-IB programmable
|
|
|
|
Hewlett-Packard 8753C |
|
|
 |
- Improvement to the 8753A, with color CRT and updated
software
- Integrates a synthesized source with over 100mW
maximum power @ 1Hz resoltion
- Displays linear and logarithmic sweep
- Frequency range: 300kHz-3GHz
- HP-IB programmable
|
|
|
Wiltron 560 |
|
 |
- Scalar analyzer
- 3 input channels
- 4 amplitude resolution settings
- Displays analog or digital mode
- Frequency range: 10MHz-34GHz with appropriate
sensors
- Operates in an IE488 interface
|
|
|
|
|
|
|
ADD-ON COMPONENTS
AC SENSORS |
 |
|
|
HP 11664A |
- For use with HP8750 series
- N or APC7 connector
- Frequency range: 10MHz-18GHz
|
|
|
HP 11664B |
- For use with HP8750 series
- 3.5mm connector
- Frequency range: 10MHz-26.5GHz
|
|
|
|
REFLECTOMETER BRIDGES |
|
|
|
AUTOTESTERS |
 |
|
Wiltron 560-98S50 |
- 10MHz-26.5GHz
- Compatible only with Wiltron 560-series
scalar analyzers
|
|
Wiltron 560-97A50 |
- 10MHz-18GHz
- Compatible only with Wiltron 560-series
scalar analyzers
|
|
|
|
|
Spectrum Analyzers
|
|
Hewlett-Packard 141T+8552B+8553B |
|
|
 |
- HP141T-based spectrum analyzer
- Absolute frequency and amplitude calibration
- Frequency range: 1kHz-110MHz
- Amplitude range: -140dBm to +10dBm
- Scan width: 20Hz/div-10MHz/div
- Bandwidth range: 10Hz-300kHz
- Easy-to-understand output
- 8x10 CM persistence CRT
- Display writing rate: 0.2s-15s
- Maximum storage time: 2 hours
|
|
|
|
Hewlett-Packard 141T+8552B+8554B |
|
- HP141T-based spectrum analyzer
- Absolute frequency and amplitude calibration
- Frequency range: 100kHz-1250MHz
- Amplitude range: -125dBm to +10dBm
- Scan width: 2kHz/div-200MHz/div
- Bandwidth range: 100Hz-300kHz
- Easy-to-understand output
- 8x10 CM persistence CRT
- Display writing rate: 0.2s-15s
- Maximum storage time: 2 hours
|
|
|
|
Hewlett-Packard 141T+8552B+8555A |
|
- HP141T-based spectrum analyzer
- Absolute frequency and amplitude calibration
- Frequency range: 10MHz-18GHz (upgradeable to 40GHz)
- Amplitude range: -125dBm to +10dBm
- Easy-to-understand output
- 8x10 CM persistence CRT
- Display writing rate: 0.2s-15s
- Maximum storage time: 2 hours
|
|
|
|
Hewlett-Packard 141T+8552B+8556A |
|
- HP141T-based spectrum analyzer
- Absolute frequency and amplitude calibration
- Frequency range: 20Hz-300kHz
- Log calibration range: -150dBm to +30dBm
- Easy-to-understand output
- 8x10 CM persistence CRT
- Display writing rate: 0.2s-15s
- Maximum storage time: 2 hours
|
|
|
|
Hewlett-Packard 3580A |
|
- Low-frequency spectrum analyzer
- Frequency range: 5Hz-50kHz
- Dynamic range: 100nV-20V (linear mode); -150dBm/dBV
to +30dBm/dBV (logarithmic mode)
- Sweep time: 1s-2000s
|
|
|
|
Hewlett-Packard 3582A |
|
- Low-frequency spectrum analyzer
- Frequency range: 0.02Hz-25.5kHz
- Dual-channel
- Digital memory track storage capabilities
- Precise measuring to ±10 degrees
|
|
|
|
Hewlett-Packard 3585A |
|
- Low-frequency spectrum analyzer
- Frequency range: 20Hz-40.1MHz
- Precise resolution; ±20% at 3dB display points
- Measurement range: -137dBm to +30dBm
|
|
|
|
Hewlett-Packard 8565A A |
|
|
 |
- Frequency range: 10MHz-22GHz (with internal mixing);
10MHz-40GHz (with external mixing)
- Displays absolute amplitude calibration
- Resolution bandwidth range: 1kHz-3MHz
|
|
|
|
Hewlett-Packard 8566B |
|
|
 |
- High-performance spectrum analyzer
- Frequency range: 100Hz-22GHz (with internal mixing),
100Hz-325GHz (with external mixing)
- Amplitude range: -134dBm to +30dBm
- 10Hz resolution bandwidth
- Excellent frequency stability
- Contains 16Kb RAM for personalized measurement
routines
|
|
|
|
Hewlett-Packard 8568B B |
|
- Slightly less-powerful brother to the HP8566B
- Frequency range: 100Hz-1500MHz
- Excellent frequency stability
|
|
|
|
Hewlett-Packard 8569B |
|
|
 |
- Frequency range: 10MHz-22GHz (expandable to 115GHz)
- Microprocessor-controlled
- Resolution 100Hz-3MHz
- Dynamic range >100dB
|
|
|
|
Tektronix 492/1/2/3 |
|
- Frequency range: 50kHz-21GHz
- Internal microprocessor allows for trace
comparisons, and frequency drift and amplitude change
measurements
- Frequency span range: 10kHz/div-500MHz/div
- Reference level range: -123dBm to +40dBm
- Includes analog and digital CRT
- Optional internal pre-selector, digital memory,
frequency stablizer, and extended resolution option
available
|
|
|
|
Tektronix 492/P |
|
- Upgrade to the Tektronix 492/1/2/3, with programming
cability in an IEEE-488 interface
- Frequency range: 50kHz-21GHz
- Internal microprocessor allows for trace
comparisons, and frequency drift and amplitude change
measurements
- Frequency span range: 10kHz/div-500MHz/div
- Reference level range: -123dBm to +40dBm
- Includes analog and digital CRT
- Optional internal pre-selector, digital memory,
frequency stablizer, and extended resolution option
available
|
|
|
|
Tektronix 494 |
|
|
 |
- Frequency range: 50kHz-2GHz
- Internal microprocessor allows for trace
comparisons, and frequency drift and amplitude change
measurements
|
|
|
|
Tektronix 494/P |
|
- Compact and sturdy
- Frequency range: 10kHz-21GHz (upgradable to 325GHz)
- Amplitude range: -117dBm to +40dBm
- Contains a built-in frequency counter and memory
storage
- GPIB-programmable
- Direct plotting capable
- Includes Help manual built into ROM
|
|
|
|
Tektronix 495 |
|
- Compact and sturdy
- Frequency range: 10kHz-1.8GHz
|
|
|
|
Tektronix 495/P |
|
- Compact and sturdy
- Frequency range: 10kHz-21GHz (upgradable to 325GHz)
- Frequency accuracy: ±20kHz @ 1GHz
- Freuency stability >50Hz/m
|
|
|
|
Tektronix 496 |
|
- Frequency range: 1kHz-1.8GHz
|
|
|
|
Tektronix 496/P |
|
- Frequency range: 1kHz-1.8GHz
- Resolution: 30Hz-1MHz
- Allows for automatic system measurements in an
IEEE-488 interface
|
|
|
MAINFRAME SYSTEMS |
|
|
Hewlett-Packard 182T+8559A |
|
|
 |
- Designed for use with HP8557-8559 spectrum analyzer
series
- Large screen
- Compact unit
- Frequency range (of HP8559A plug-in): 10KHz-21GHz
|
|
|
|
Hewlett-Packard 182T+8558B B |
|
- Designed for use with HP8557-8559 spectrum analyzer
series
- Large screen
- Compact unit
- Frequency range (of HP8558A plug-in): 10KHz-1500MHz
- Compatible with HP8444A
tracking generator
|
|
|
|
Hewlett-Packard 182T+8557A |
|
- Designed for use with HP8557-8559 spectrum analyzer
series
- Large screen
- Compact unit
- Frequency range (of HP8557A plug-in): 10KHz-350MHz
|
|
|
|

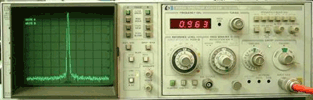

Hewlett-Packard 853A+8559A A |
|
|
 |
- Designed for use with HP8557-8559 spectrum analyzer
series plug-ins
- Independent storage into 2 digital traces
- Display functions include max hold, digital
averaging, and trace normalization
- HP-IB compatible
- Compact and rugged
- Frequency range (of HP8559A plug-in): 10KHz-21GHz
|
|
|
|
Hewlett-Packard 853A+8558B B |
|
- Designed for use with HP8557-8559 spectrum analyzer
series plug-ins
- Independent storage into 2 digital traces
- Display functions include max hold, digital
averaging, and trace normalization
- HP-IB compatible
- Compact and rugged
- Frequency range (of HP8558A plug-in): 10KHz-15003MHz
|
|
|
|
Hewlett-Packard 853A+8557A |
|
- Designed for use with HP8557-8559 spectrum analyzer
series plug-ins
- Independent storage into 2 digital traces
- Display functions include max hold, digital
averaging, and trace normalization
- HP-IB compatible
- Compact and rugged
- Frequency range (of HP8557A plug-in): 10KHz-350MHz
|
|
|
|
Tektronix 7603+7L12 |
|
- Large CRT display with internal graticule, variable
illumination, and 15kV accelerating potential
- Frequency range (of 7L12 plug-in): 100kHz-1.8GHz
(expandable to 2.5GHz), using the
TR502 tracking generator
|
|
|
|
Tektronix 7603+7L13 |
|
|
 |
- Large CRT display with internal graticule, variable
illumination, and 15kV accelerating potential
- Frequency range (of 7L13 plug-in): 1kHz-1.8GHz
(expandable to 2.5GHz), using the
TR502 tracking generator
|
|
|
|
Tektronix 7603+7L14 |
|
- Large CRT display with internal graticule, variable
illumination, and 15kV accelerating potential
- Frequency range (of 7L14 plug-in): 10kHz-1.8GHz
(expandable to 2.5GHz), using the
TR502 tracking generator
- Resolution bandwidth (of 7L14 plug-in): 30Hz-3MHZ
- Capable of swept measurements
|
|
|
|
Tektronix 7603+7L18 |
|
|
 |
- Large CRT display with internal graticule, variable
illumination, and 15kV accelerating potential
- Frequency range (of 7L18 plug-in): 1.5GHz-18GHz
(expandable to 60GHz)
|
|
|
|
Tektronix 7603+7L5 |
|
- Large CRT display with internal graticule, variable
illumination, and 15kV accelerating potential
- Frequency range (of 7L5 plug-in): 20Hz-5MHz
- Resolution bandwidth: 10Hz-30kHz
|
|
|
ADD-ON COMPONENTS
TRACKING
GENERATORS |
|
|
Hewlett-Packard 8443A |
|
|
 |
- For use with the HP141T+8553B+8552B system, to 110MHz
- Includes counter and precision RF attenuators
- Amplitude
range: -120dBm to +10dBm
|
|
|
|
Hewlett-Packard 8444A |
|
|
 |
- Measures frequency response when used with
8554A and
8555A spectrum analyzers
- Frequency range: 500kHz-1250MHz (upgradeable to
1500MHz)
- Output level 0dBm (cont. variable to -10dBm)
|
|
|
|
Hewlett-Packard 8444A/059 |
|
- An step up from the original 8444A; has an extended
frequency range with no additional upgrade hardware
required
- Has a 550MHz oscillator, allowing it to be used with
other HP spectrum analyzers including the
8558B, 8565A, 8569A,
8569B, and
8590A
- Frequency range: 500kHz-1500MHz
- Output level 0dBm (cont. variable to -10dBm)
|
|
|
|
Tektronix TR502 |
|
|
 |
- For use with Tektronix 7000-series (7L12/7L13/7L14)
spectrum analyzers
- Capable of swept
measurements up to 1.8GHz
- Resolution bandwidth: 30Hz
|
|
|
|
Tektronix TR03 |
|
- For use with Tektronix 490-series spectrum analyzers
- Frequency range: 100kHz-1.8GHz
- Variable attenuator from -59dB to 0dB
|
|
|
TRACKING PRE-SELECTORS |
|
|
Hewlett-Packard 8445B |
|
|
 |
- Connects an HP8555A
spectrum analyzer to a YIG tuned filter, to tune
precisely to the analyzers receiving frequency
- Suppression frequency range: 1.8GHz-18GHz
- Requires a special
connecting cable to the 141T
mainframe
|
|
|
MIXER KITS |
|
|
Option 43: External Mixer Kit |
|
|
 |
- For use with the HP8569B
spectrum analyzer
- Extends the frequency range upper bound to 40GHz
|
|
|
|
Frequency Counters
|
|
Hewlett-Packard 5328A |
|
|
 |
- Modular design
- 9-digit LED display
- Includes as a ROM-controlled measurement cycle
- Frequency range: 0Hz-100MHz (expandable to 512MHz)
|
|
|
|
Hewlett-Packard 5340A |
|
|
 |
- Highly sensitive
- Integrates microwave samplers into advanced
phase-lock loops
- Frequency range: 10Hz-18MHz (expandable to 512MHz)
|
|
|
|
Hewlett-Packard 5342A/001/002 |
|
|
 |
- Contains microprocessor-powered keyboards
- 11-digit sectionalized display
- Frequency range up to 18GHz
|
|
|
|
Hewlett-Packard 5343A |
|
- Upgrade to the HP5343A, with a maximum frequency
bound of 26.5GHz
- Contains microprocessor-powered keyboards
- 11-digit sectionalized display
|
|
|
|
Function Generators
|
|
Hewlett-Packard 3310A |
|
- Voltage-controlled generator
- Compact
- Contains a DC offset, external voltage control, and
a fast rise time sync output
- Available sine, square and triangle functions
|
|
|
|
& Hewlett-Packard 3312A |
|
|
 |
- Combines 2 independent function generators into one
unit
- Main generator can be triggered to perform sweep functions, AM, FM or tone bursts
- Frequency range: 0.1Hz-13MHz (8 decade steps)
|
|
|
|
Hewlett-Packard 3325A/1 |
|
|
 |
- Synthesizer/function generator
- 11-digit resolution
- Frequency range: 0.000001Hz-20.999999999MHz
- Stresses signal accuracy, purity, and stability
- Contains a programmable systems instrument
|
|
|
Wavetek 148 |
- Contains 2 generators
- Frequency range: 0.002Hz-20Hz
|
|
|
|
Signal Generators
|
|
Hewlett-Packard 8640B/1-2-3 |
|
|
 |
- Provides calibrated and metered AM, FM, and pulse modulation
- Features an internal
phase lock synchronizer and digital frequency readout
- Low SSB phase noise
|
|
|
|
Hewlett-Packard 8656A |
|
- Programmable synthesized signal generator
- Frequency range: 100kHz-990MHz
- Output range: -127dBm to +13dBm
- Internal modulation for AM and FM
|
|
|
|
Hewlett-Packard 8657A |
|
|
 |
- Frequency range: 100kHz-1040MHz
- Able to combine AM and FM modulation modes (AM/AM,
FM/FM, or AM/FM) from internal and external sources
- Dynamic output range: -143.5dBm to +13dBm
- Very low radiated emissions
- Comes with reverse power protection (up to 50W)
|
|
|
|
Hewlett-Packard 8672A |
|
- Synthesized generator
- Frequency range: 2GHz-18GHz
- Output range: -120dBm tro +1dBm (impedence 50 ohms)
- Fully-programmable front-panel automatic test system
functions
|
|
|
|
Hewlett-Packard 8673B |
|
- A higher-powered cousin to the 8672A, with a higher
frequency bound and internal AM/FM/pulse modulation
- Synthesized generator
- Frequency range: 2GHz-26GHz
- Output range: -120dBm tro +1dBm (impedence 50 ohms)
- Fully-programmable front-panel automatic test system
functions
|
|
|
MAINFRAME SYSTEMS |
|
|
Hewlett-Packard
8660C+86633B+86602B |
|
|
 |
- Modular solid state plug-in system
- Frequency range: 1MHz-1300MHz
- 10-digit display
- Provides AM/FM modulation
- Features digital sweep, frequency stepping, and
frequency control with a tuning knob
- Direct key entry of CW frequencies
|
|
|
|
Hewlett-Packard 8660C+86633B+86603A |
|
- Upgrade to the RF portion of the 8660C+86633B+86602B
system, with a greater frequency range
- Modular solid state plug-in system
- Frequency range: 1MHz-2600MHz
- 10-digit display
- Provides AM/FM modulation
- Features digital sweep, frequency stepping, and
frequency control with a tuning knob
- Direct key entry of CW frequencies
|
|
|
|
Sweep Generators
|
|
Hewlett-Packard 8350A |
|
|
 |
- RF and microwave source for
swept measurements
- Stresses speed and accuracy in measurements
- Allows for complete computerized control of
front-panel function settings
|
|
|
|
Hewlett-Packard 8350B |
|
- Upgraded brother to the 8350A, with broad marking
abilities, versatile data entry, and HP-IB programming
capability
- RF and microwave source for
swept measurements
- Stresses speed and accuracy in measurements
- Allows for complete computerized control of
front-panel function settings
|
|
|
|
Hewlett-Packard 8620C |
|
|
 |
- Up to 4 bands and frequency scales can be chosen
with a single band select lever
- 4 sweep functions
- 3 markers
|
|
|
Wavetek 2001A
|
|
 |
- Frequency range: 1MHz-1.4GHz (over 3 bands)
- Output range: -80dBm to +10dBm
|
|
|
Wavetek 2002
|
- Frequency range: 1MHz-2.5GHz (over 4 bands)
- Output range: -17dBm to +13dBm
- 3 operation modes
|
|
|
Wiltron 6647
|
- Frequency range: 10MHz-18.6GHz
- Internally-controlled output levels >10mW
- Front-panel functions can be controlled with GP-IB
- 5 sweep modes
- 3 built-in markers
- Can be phase locked to an external counter
|
|
|
EIP931/010
|
|
 |
- Frequency range: 2GHz-18.6GHz (lower bound
expandable to 10MHz)
- Contains an interactive CRT display, built-in
frequency/power calibration, and power correction-based
real-time external leveling
- 7 control functions
- Can be computer-operated with a IEEE488 (GP-IB)
interface\
|
|
|
ADD-ON COMPONENTS |
|
|
Hewlett-Packard 83522A |
|
- For use with the HP8350A/B (pictured with the
HP8350A)
- Allows for frequency range of 10MHz-2.4GHz
- Uses a single continuous sweep
|
|
|
|
Hewlett-Packard 11869A |
|
|
 |
- Adapter for the HP8350A/B
creating an electrical and mechanical
interface between the unit and HP86200
series plug-ins
|
|
|
|
Hewlett-Packard 11665B |
|
- Pin modulator for the 8620C
|
|
|
|
Hewlett-Packard 86290A/B/C |
|
|
 |
- Continuous sweep
- Frequency range: 2GHz-18GHz (over 3 separate bands)
- Output level: +7dBm
|
|
|
|
Hewlett-Packard 86290A/B/C |
|
- Continuous sweep
- Frequency range: 2GHz-18.6GHz (over 3 separate
bands)
- Output level: +10dBm
|
|
|
|
Hewlett-Packard 86290A/B/C |
|
- Continuous sweep
- Frequency range: 2GHz-18.6GHz (over 3 separate
bands)
- Output level: +13dBm
|
|
|
|
Hewlett-Packard 86222B/02 |
|
- Allows for CW or continuous sweep
- Frequency range: 10MHz-2.4GHz
- Power output range: 0dBm to +13dBm
|
|
|
|
Multimeters
|
|
Hewlett-Packard 3455A |
|
- Digital display
- Microprocessor-controlled
- Measures DC/AC voltage and resistance
- Auto
and manual ranging
- Accuracy: ±0.0008% + 2 counts (10DCV range, over a
24-hour period)
- HP-IB capability
|
|
|
|
Hewlett-Packard 3457A |
|
|
 |
- Digital display
- Measures DC voltage & current, true RMS AC volts &
current, resistance, frequency, and period
- 7 functions
- 3 1/2-6 1/2 digit resolution (expandable to 7 1/2
digits)
- DC accuracy: up to 5ppm
- Reading rate: 0.5 sec/read
- Input expandable to 10 channels
|
|
|
|
Oscilloscopes
|
|
Hewlett-Packard 1740A |
|
|
 |
- General purpose 100MHz
oscilloscope
- 1mV/div
deflector factors on 2 vertical channels with DC to 40MHz bandwidth performance
(performance expanded to 100MHz with 5mV/div-20V/div
deflector factors
- Contains a 3rd channel trigger view
|
|
|
|
Hewlett-Packard 54100D |
|
- 1GHz bandwidth resolution
- Random repetitive sampling
|
|
|
|
Hewlett-Packard 54201A |
|
- 300MHz repetitive bandwidth oscilloscope
- Contains Dual 200 Mega-sample/sec
digitizers
- 50MHz single-shot bandwidth
- Pre-trigger
display
- Input auto-scaling
- Automatic
waveform parameter measurements
|
|
|
|
Hewlett-Packard 54504A |
|
|
 |
- 300MHz repetitive bandwidth oscilloscope
- Contains Dual 200 Mega-sample/sec
digitizers
- 50MHz single-shot bandwidth
- Pre-trigger
display
- Input auto-scaling
- Automatic
waveform parameter measurements
|
|
|
|
Tektronix 2230 |
|
|
 |
- 100MHz digital storage oscilloscope
- 100nS glitch capture
- Selectable 1K or 4K record length
- Point selectable
pre-trigger
- 3 save reference memory locations
|
|
|
|
Tektronix 2432 |
|
- 300MHz digital storage oscilloscope
- Scan speed: 5nS/div-5s/div
- 1Kb memory
- Automatic measurement capabilities
- Online help
|
|
|
|
Tektronix 465 |
|
|
 |
- 100MHz portable oscilloscope
- Contains trigger-view option
- Has a front-panel calibrator
- Dual trace: 5mV-5V division
- Features automatic volts/div
|
|
|
|
Tektronix 475 |
|
|
 |
- Upgrade to the Tektronix 465, with dual time
base/delayed sweep and an X10 sweep magnifier
- 100MHz
portable oscilloscopes
- Contains trigger-view option
- Has a front-panel calibrator
- Dual trace: 5mV-5V division
- Features automatic volts/div
|
|
|
ADD-ON COMPONENTS |
|
|
Tektronix 7613/23/33 |
|
- Multi-mode storage instruments
- For storing and viewing fast-rise, low repetition rate, single-shot,
and slow-moving waveforms
|
|
|
|
Tektronix 7000 series plug-ins |
|
- Plug-ins for the use with 7000 series mainframes
- Various plug-ins available, such as time base,
vertical amplifiers, differential comparators ,
differential amplifiers, counters, multi-meters, and
more
|
|
|
|
Tektronix P6201 FET Probe |
|
- For 900MHz band
- Allows unity gain and DC
|
|
|
|
Power Meters
|
|
Hewlett-Packard 432A |
|
- Stresses accuracy and temperature range
- Frequency range upgradeable to 10MHz-18GHz
|
|
|
|
Hewlett-Packard 435B |
|
|
 |
- Analog power meter
- Power range: -65dBm to +44dBm (depending on sensor)
- Frequency range: 100kHz-26.5GHz (depending on
sensor)
- Compatible HP8480-series power sensors
|
|
|
|
Hewlett-Packard 436A |
|
|
 |
- Digital power meter
- Designed for RF and microwave power
measurements
- Power range: -70dBm to +44dBm (depending on sensor)
- Frequency range: 100kHz-26.5GHz (depending on
sensor)
- Compatible with HP8480-series power sensors
|
|
|
|
Hewlett-Packard 438A |
|
- Dual-channel power meter
- For use with ATE systems
- Power range: -70dBm to +40dBm (depending on sensor)
- Frequency range: 100kHz-50GHz (depending on sensor)
- Compatible with HP8480-series power sensors
|
|
|
Boonton 4220 |
|
 |
- Single-channel solid state RF
power meter
- Microprocessor-based
- Power range: -60dBm to +20dBm
- Frequency range: 100kHz-18GHz (with included sensor;
can be expanded to 110GHz)
- Displays readings in 6 different units
- Accuracy: ±0.7%
(at 23ΊC, 90 days)
|
|
|
|
Plotters
|
|
Hewlett-Packard 7550A |
|
- 8-pen plotter
- Includes automatic cut sheet feed option
- Draw speed 80cm/s (31.5in/s) in any direction
|
|
|
|
Hewlett-Packard 7475A |
|
- 6-pen plotter
- For A4/A and A3/B size printouts
|
|
|
|
Hewlett-Packard 7470A |
|
|
 |
- 2-pen
plotter
- For 8.5 x 11" and A4 size printouts
- Made of high-quality parts
|
|
|
|
Wattmeters
|
Bird 43 |
|
 |
- Thruline directional wattmeter
- Measures forward or
reflected RF power in coaxial lines
- Power range: 100mW-10kW (with Bird plug-ins)
- Frequency range: 0.45-2300 Mhz (depending on
elements)
- Rugged
|
|
|
Bird 43P |
- Measures forward and
reflected RF power in coaxial lines
- Measures
true peak power of SSB, AM, and limited pulse signals
- Rugged
|
|
|
Bird 4410 |
|
 |
- Rugged
- Improved dynamic range
- Able to read 7 power ranges
|
|
|
Bird 4381 |
- Digital RF wattmeter
- Reads incident and reflected CW and FM
power in watts or dBm
- Reads incident and reflected
peak-envelope power of SSB/DSB and symmetrical AM in watts
- Reads incident and reflected peak pulse power as narrow as 50
micro-seconds in watts
- Calculates SWR, dB return loss,
and modulation percentage
|
|
|
|
Dummy Loads
|
Bird 8135 |
|
 |
- 150W continuous dummy load
- For frequencies up to 2.4 GHz
- Dimensions: 10 x 6 x 4"
- Weight: 2.7kg.
|
|
|
Bird 8201 |
|
 |
- 500W continuous dummy load
- For frequencies up to 2.4 GHz
- Dimensions: 17 x 9 x 6
- Weight: 9.5kg
|
|
|
Bird 8251 |
- 1000W continuous dummy load
- For frequencies up to 2.4 GHz
- Dimensions: 18 x 9 x 6
- Weight: 11.5kg
|
|
|
Bird 6735 |
|
 |
- 1200W continuous dummy load
- For frequencies up to 2.4 GHz
- Dimensions: 18 x 9 x 6
- Weight: 11.5kg
|
|
|
Bird 8890 |
|
 |
- 2500W continuous dummy load
- For frequencies up to 2.4 GHz
- Dimensions: 18 x 7 x 24
- Weight: 26kg
|
|
|
|
 |
Spry Group Multimedia, LLC is an authorized NicomUSA distributor. |
Most product images and description information from licensor websites. Product names and designs are trademarks, in some
locations registered, of their respective owners.
|
|
|
equipment
