NT250/LCD
Phase Locked Loop Programmable
FM Exciter/Transmitter 87.5 - 108 MHz Range

• Contains a low-pass/harmonic filter
• Instantly programmable from the front panel
• Adjustable power output (5-250W)
• Remote on/off control and metering of forward & reflected power
• Password-protected settings
• Optional RS232 compatibility
• Optional software for remote monitoring via PC available
• Optional FSK ID Keyer
• Technical specifications

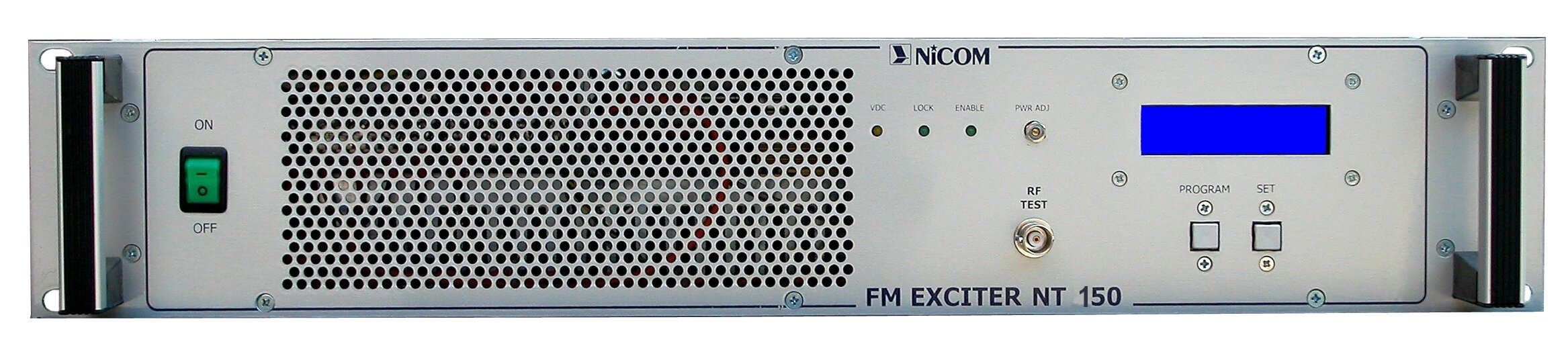

NT150/LCD
Phase Locked Loop Programmable
FM Exciter/Transmitter 87.5 - 108 MHz Range

• Contains a low-pass/harmonic filter
• Instantly programmable from the front panel
• Adjustable power output (5-150W)
• Remote on/off control and metering of forward & reflected power
• Password-protected settings
• Optional RS232 compatibility
• Optional software for remote monitoring via PC available
• Technical specifications


NT30
Phase Locked Loop Programmable
30W FM Exciter/Transmitter (87.5-108 MHz)

• Contains a low-pass/harmonic filter
• Instantly programmable from the front panel
• Adjustable power output (2-30W)
• Remote on/off control and metering of forward & reflected power and internal temperature
• Constructed of conservatively-rated components, with a modular design
• Password-protected settings
• 24-volt power capability
• Optional remote modulation metering
• Optional FSK ID Keyer
• Technical specifications


NT20
Phase Locked Loop Programmable
20W FM Exciter/Transmitter (87.5-108 MHz)

• Contains a low-pass/harmonic filter
• Instantly programmable from the front panel
• Adjustable power output (2-20W)
• Remote on/off control and metering of forward & reflected power, modulation, and internal temperature
• Constructed of conservatively-rated components, with a modular design
• Password-protected settings
• Optional FSK ID Keyer
• Technical specifications


NA2001
2kW FM Broadband MOSFET Amplifier (87.5-108 MHz)

• High-gain PA, generally capable of at least 2000W output with 20W drive input power
• Automatic gain control
• No tuning required
• Easily replaceable component parts
• Contains an advanced recycling overload and protection system
• Can perform proportional auto-foldback of output power
• Remote control and telemetry capable
• Technical specifications


NA1001
1kW FM Broadband MOSFET Amplifier (87.5-108 MHz)

• High-gain PA, generally capable of at least 1500W output with 15W drive input power
• Automatic gain control
• No tuning required
• Easily replaceable component parts
• Contains an advanced recycling overload and protection system
• Can perform proportional auto-foldback of output power
• Remote control and telemetry capable
• Technical specifications


NA501
500W FM Broadband MOSFET Amplifier (87.5-108 MHz)

• High-gain PA, generally capable of at least 500W output with 10W drive input power
• Automatic gain control
• No tuning required
• Easily replaceable component parts
• Contains an advanced recycling overload and protection system
• Can perform proportional auto-foldback of output power
• Remote control and telemetry capable
• Technical specifications


TSL 910-RSL 900
Composite Aural STL System

• Front-panel adjustable 0-12W output power
• RS232 built-in remote control
• Frequency can be externally programmed
• Contains 3 SCA’s
• Front-panel monitoring of RF (on the transmitter), and IF (on the receiver)
• Password-protected settings
• Includes monitoring software
• Meets or exceeds current FCC and CCIR standards
• Technical specifications


NRPU01  /  NRPU/R
Remote Pick-Up System

• Highly flexible remote system
• 3 XLR inputs that can be used as microphone or line inputs
• 2 adjustable monitor headphone outputs
• Contains a meter that indicates forward & reflected power, modulation, and battery status
• Easy switching between F1 and F2
• Runs on 100-240VAC, on a car battery when using the external power input connector, or on an optional battery pack
• Transmitter works with either a whip antenna or a light directional antenna (receiver requires a directional antenna)
• Transmitter can contact receiver using a built-in sub-audio tone
• Optional battery pack (12VAC@12A)
• Technical specifications


NTR30
Front Panel Programmable FM Translator System (87.5-108 MHz Range)

• Up to 30W ALC adjustable via front panel
• Instant front panel programmability in 10 kHz increments
• High frequency stability is ensured by the Phase Locked Loop circuit with a minimal drift quartz crystal
• Power, deviation, and frequency are controlled and shown on LCD front panel
• Compact 2 + 1 units (three rack spaces total)19" rack
• Excellent RF immunity
• Modular construction
• Forced ventilation cooling
• AC/DC switching power supply
• 24 V DC capability (on NT30)
• MOSFET technology inside
• FSK ID Keyer optional
• Transmitter remote control capability (RS232) (optional)
• Software for monitoring remote control features including internal temperature, turning transmitter off/on, and changing transmit frequency is provided (optional)
• FCC and IC Certified
• Technical specifications


Or build your own translator package!  Details here

NLRFM1
High Fidelity FM Receiver
87.5-108 MHz Range

• FM Receiver for rebroadcast applications or station monitoring
• State of the art sound quality
• Dynamic selectivity
• 100 microvolts stereo sensitivity
• Great performance in the presence of strong electromagnetic fields
• Unbalanced audio mpx output
• Bandpass filter included
• Technical specifications
